Up & Over Pallet Gate - Model LC/HP2000

In stock
SKU
Up & Over Pallet Gate - Model LC/HP2000
As low as £956.00

Product Specifications

For Industrial, commercial & warehouse use:

If you would like to click and collect please select from the options below (small packaging charge applies). For delivery please select below and this will be calculated on the next page.

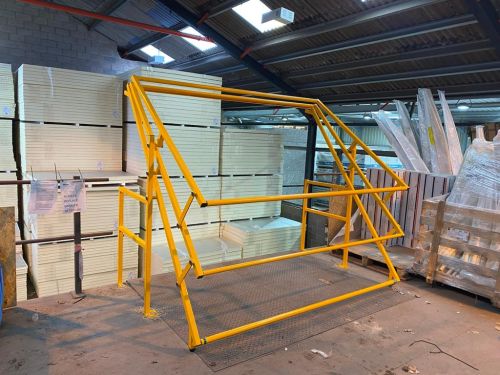

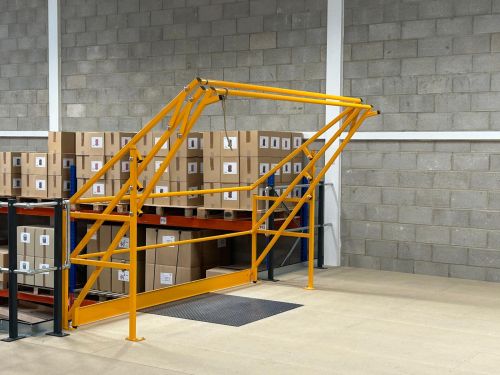

The LC/HP (low ceiling/high pallet) gate is the most changeable model that is produced in the different ranges

The LC/HP pallet gate can be used on multi-tier mezzanine floors as the arms do not protrude over the platform edge when in either the open or closed positions.

All gates are powder coated as standard in RAL 1028 (yellow) (unless specified) and complete with a front kick plate as standard.

Installation: Most customers prefer to install their own gates. Full assembly and fitting instructions are included. However, if this is not practical, a full installation service is available. Please contact us for more details.









Key Information:

  • For Industrial, commercial & warehouse use:
  • To suit standard maximum pallet dimensions of:
  • Height:2.000m
  • Deep: 1.450m
  • Outer Width - To calculate the width of the pallet gate required: add 300mm to the pallet you are using

(Example: A pallet that is 1.500m wide will require the 1.800m outer width gate)

  • Headroom clearance from floor to ceiling needed: 2.300m
  • Collection is available from our Stoke on Trent site.
  • Delivery is also available.
  • Materials:  All steel conforms to BS EN 10219-1:1997
  • Protection wear plate: Not Included
